Technical Data

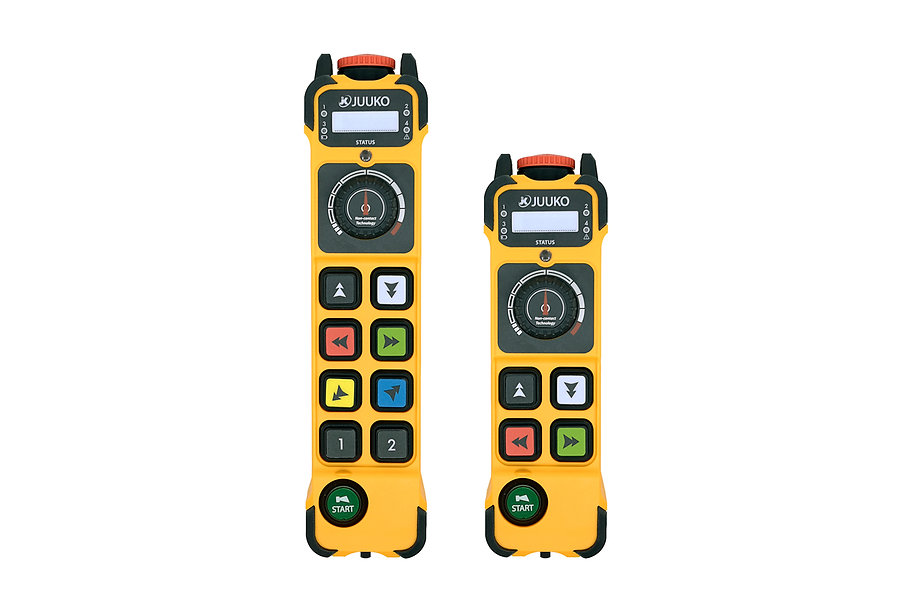

Pushbutton
2, 4, 6, 8,10, 12 single / double pressure motion buttons
2, 4, 6, 8,10, 12 single / double pressure motion buttons
Weight
approx. 305g (2-8 buttons)
approx. 390g (10, 12 buttons)
Size
193×57×51mm(2-8 buttons)
230×57×51mm(10, 12 buttons
Frequency band
315 / 418 / 429 / 433 / 447 / 470 / 915 MHz / 2.4 GHz
315 / 418 / 429 / 433 / 447 / 470 / 915 MHz / 2.4 GHz
Channel space
12.5 kHz
Number of available on/off command
max. 24 + Start and EMO
Hamming distance
≥ 15
Radio communication
bi-directional
Frequency handling
Automatic and dynamic switching between 2 channels
Power supply
LR6(AA)1.5V / NiMH(AA)1.2V x2
LR6(AA)1.5V / NiMH(AA)1.2V x2
Stop command response time
~ 50 ms
Command response time
~ 50 ms
Protection degree
IP65
Operating and storage temperature
(-25°C)~(+55°C) / (-40°C)~(+85°C)
Housing material
PA6 (GF30%)
