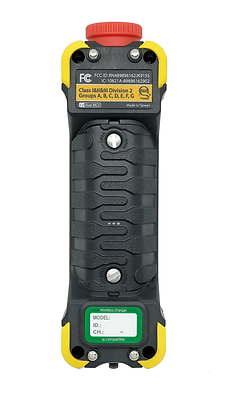

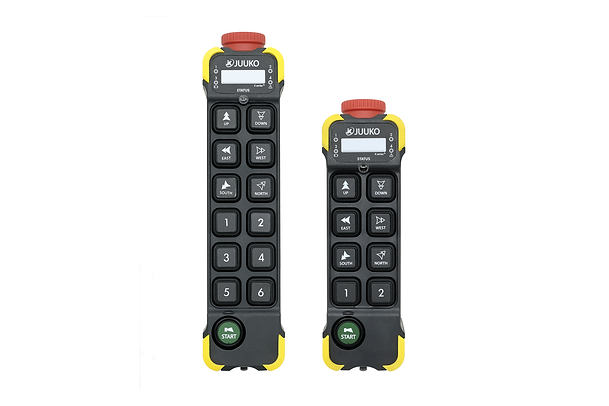

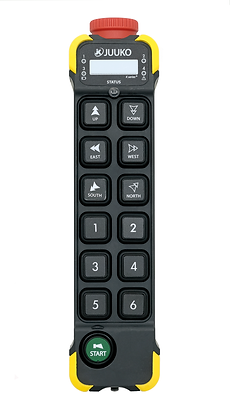

K series EX

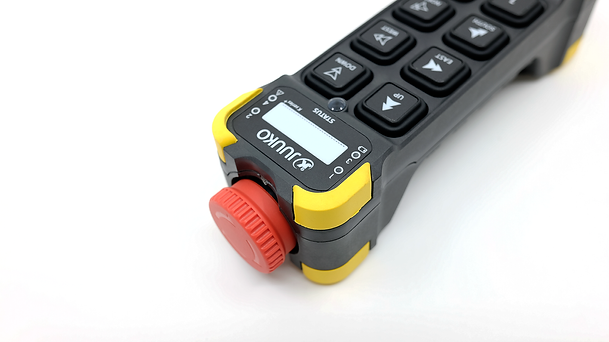

  • Independent LEDs, indicate the status of the battery
  • Activation of the transmitter is protected by an electronic key-code and an auto shut-off option which is programmable
  • The system automatically change to another frequency in the presence of radio interference
  • Eco power management system. Save on batteries
  • It can receive and display via 4 LEDs signals coming from the receiver (relay action feedback)

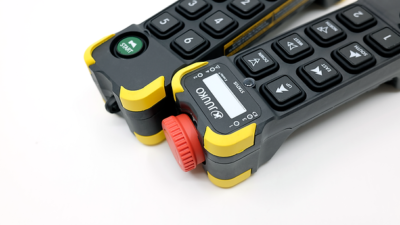

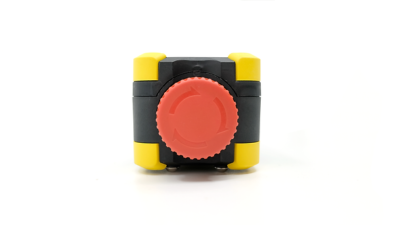

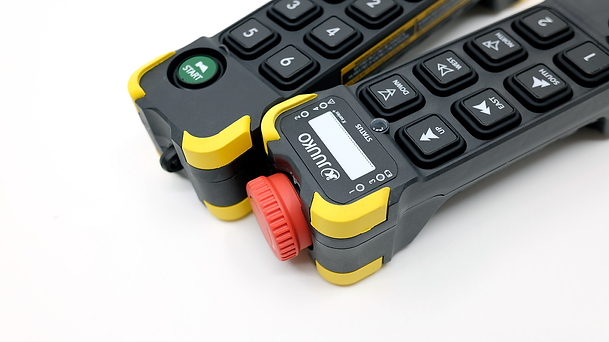

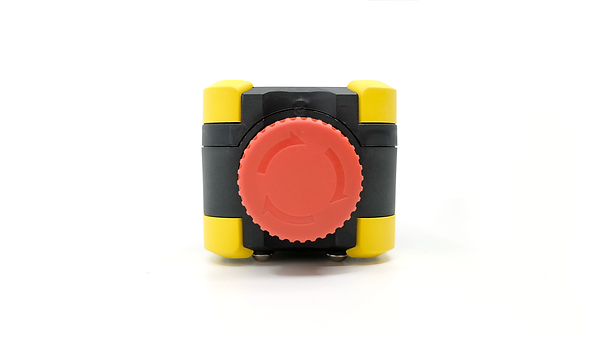

  • Mushrooms type EMO button
  • Internal BootLoader, up firmware to the date by using computer
  • Wireless pairing procedure using the keyboard pushbuttons
  • ​QI wireless charging pad is optional in New 2016 K plus series

Technical Data

Pushbutton
2, 4, 6, 8,10, 12 single / double pressure motion buttons

Weight
approx. 325g (2-8 buttons)
approx. 390g (10, 12 buttons)

Size
193×57×51mm(2-8 buttons)
230×57×51mm(10, 12 buttons)

Frequency range
902.5~927.5 MHz

Modulation method
2 GFSK

Typical operating range
100M

Control system
PLL

Antenna impedance
50Ω

Typical response time for
Stop command and commands
50mS~100mS

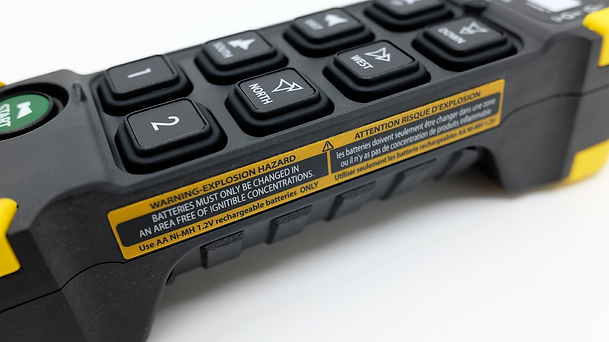

Power supply
AA Ni-MH 1.2V x2

Antenna
Internal

Average power consumption
36mA@DC2.4V(default setting)

Radio-frequency power
≦25mW (default setting)

Operating and storage temperature
(-20°C)~(+85°C)

Protection degree
IP65

Housing mate
PA6(30% GF)

Features

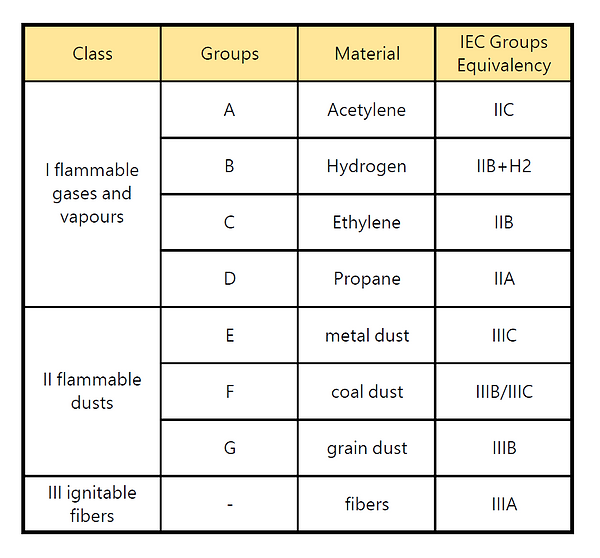

Rating
Class I & II & III
division 2
groups A, B, C, D, E, F, G
