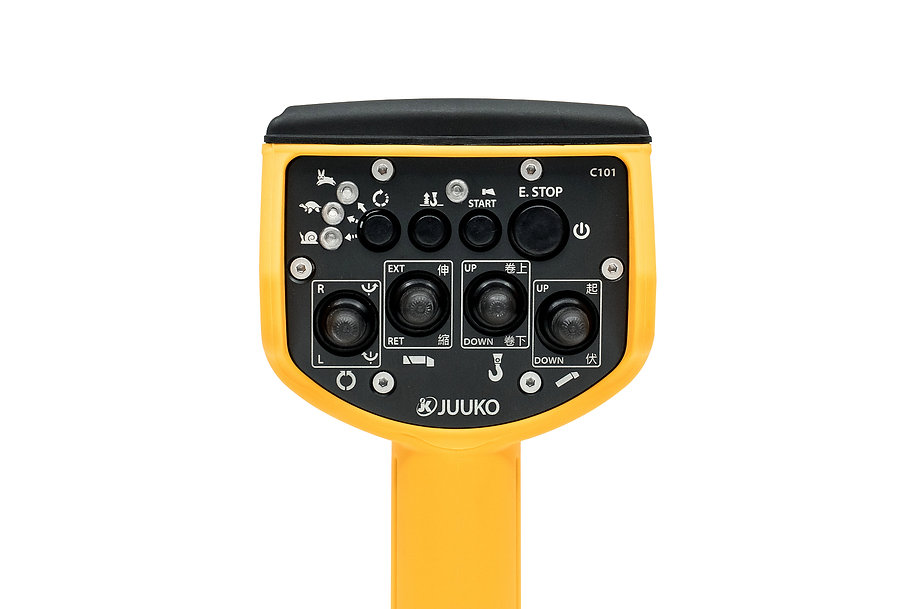

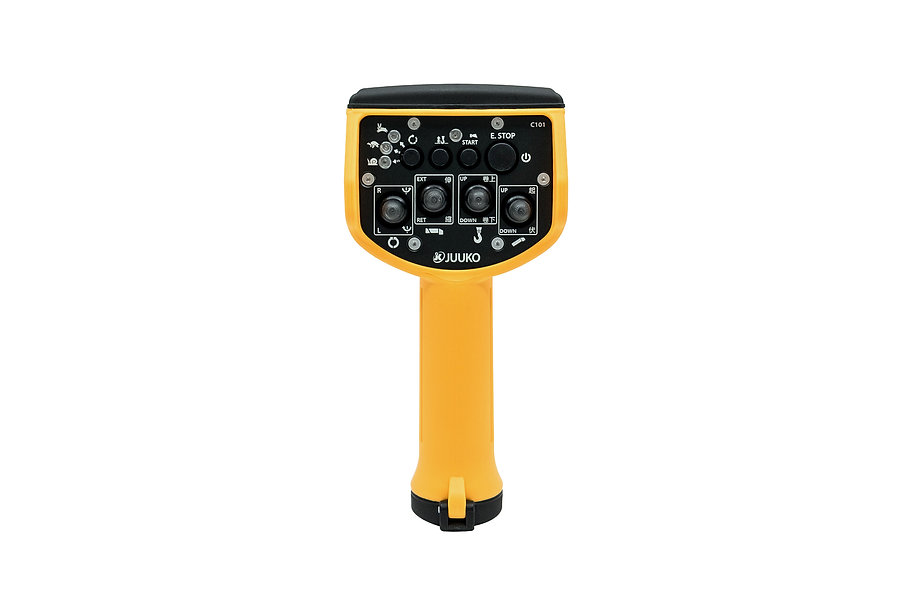

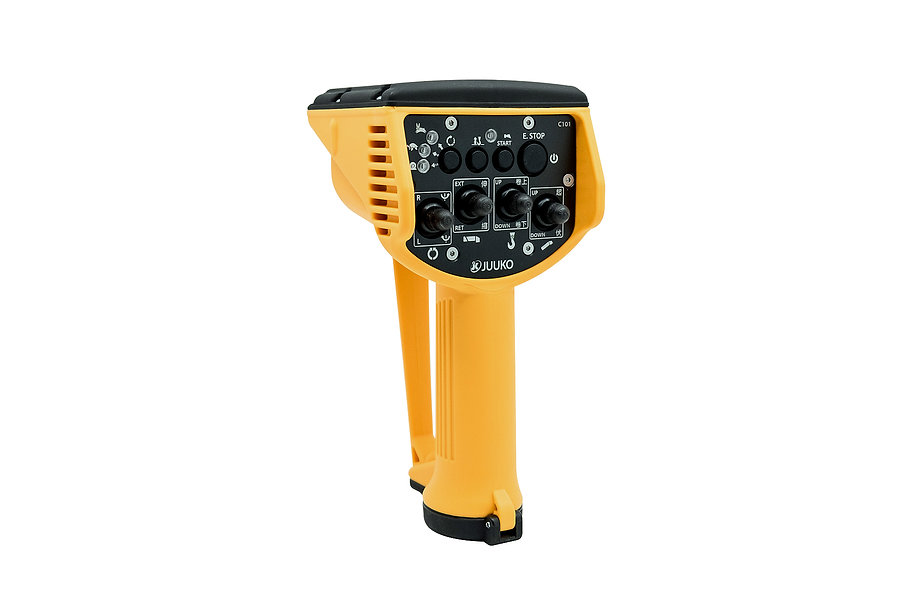

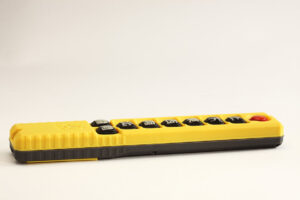

C Series

The system automatically change to another frequency in the presence of radio interference
Eco power management system. Save on batteries
Internal BootLoader, up firmware to the date by using computer
Wireless pairing procedure using the keyboard pushbuttons
11 digital and 2 bi-directional PWM analog outputs

Technical Data

Pushbutton
4 single pressure motion buttons
4 Toggle switch
1 Proportional trigger

Weight
approx. 600g

Size
203×106×100mm

Frequency band
315/ 418/ 429/ 433/ 447/ 470/ 868/ 915 MHz / 2.4 GHz

Channel space
200K

Hamming distance
≥ 15

Radio communication
bi-directional

Frequency handling
Automatic and dynamic switching between 2 channels

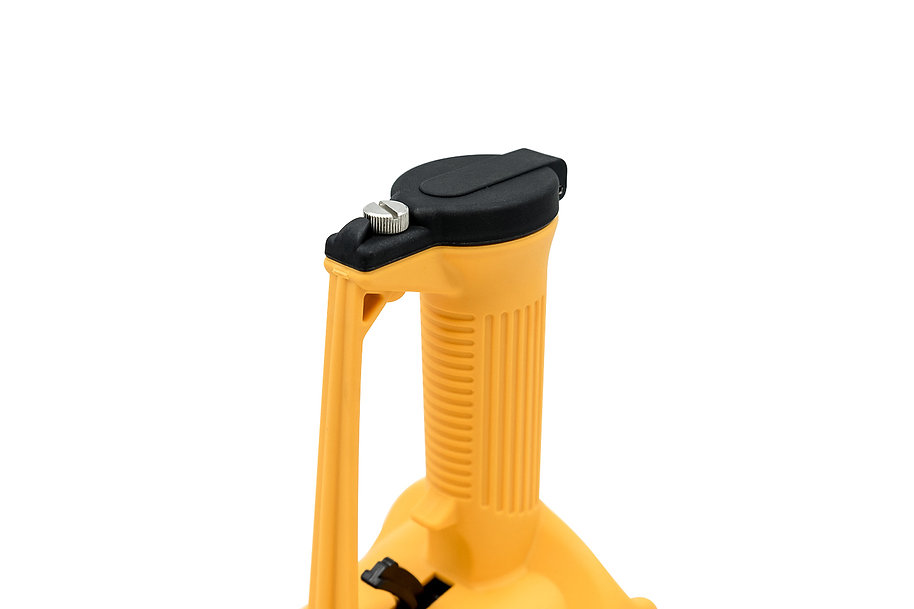

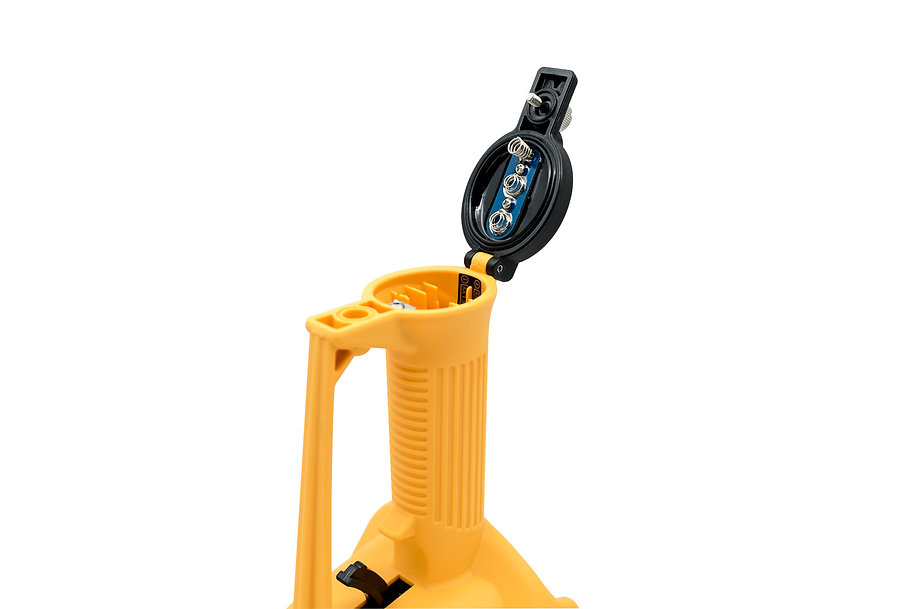

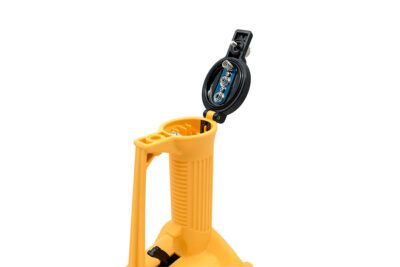

Power supply
LR6(AA)1.5V x4

Stop command response time
~ 50 ms

Command response time
~ 50 ms

Protection degree
IP65

Operating and storage temperature
(-25°C)~(+55°C) / (-40°C)~(+85°C)

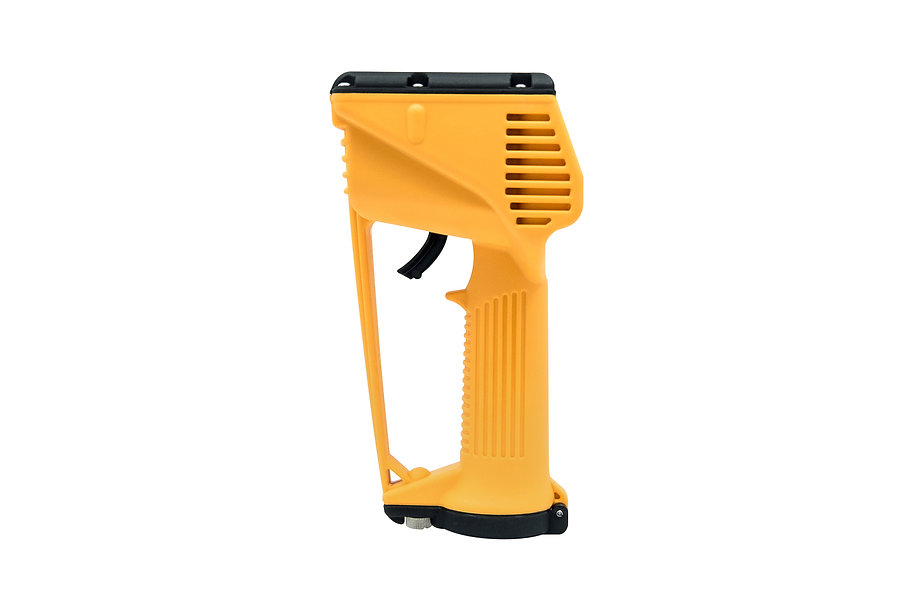

Housing material
PA6 (GF30%)
