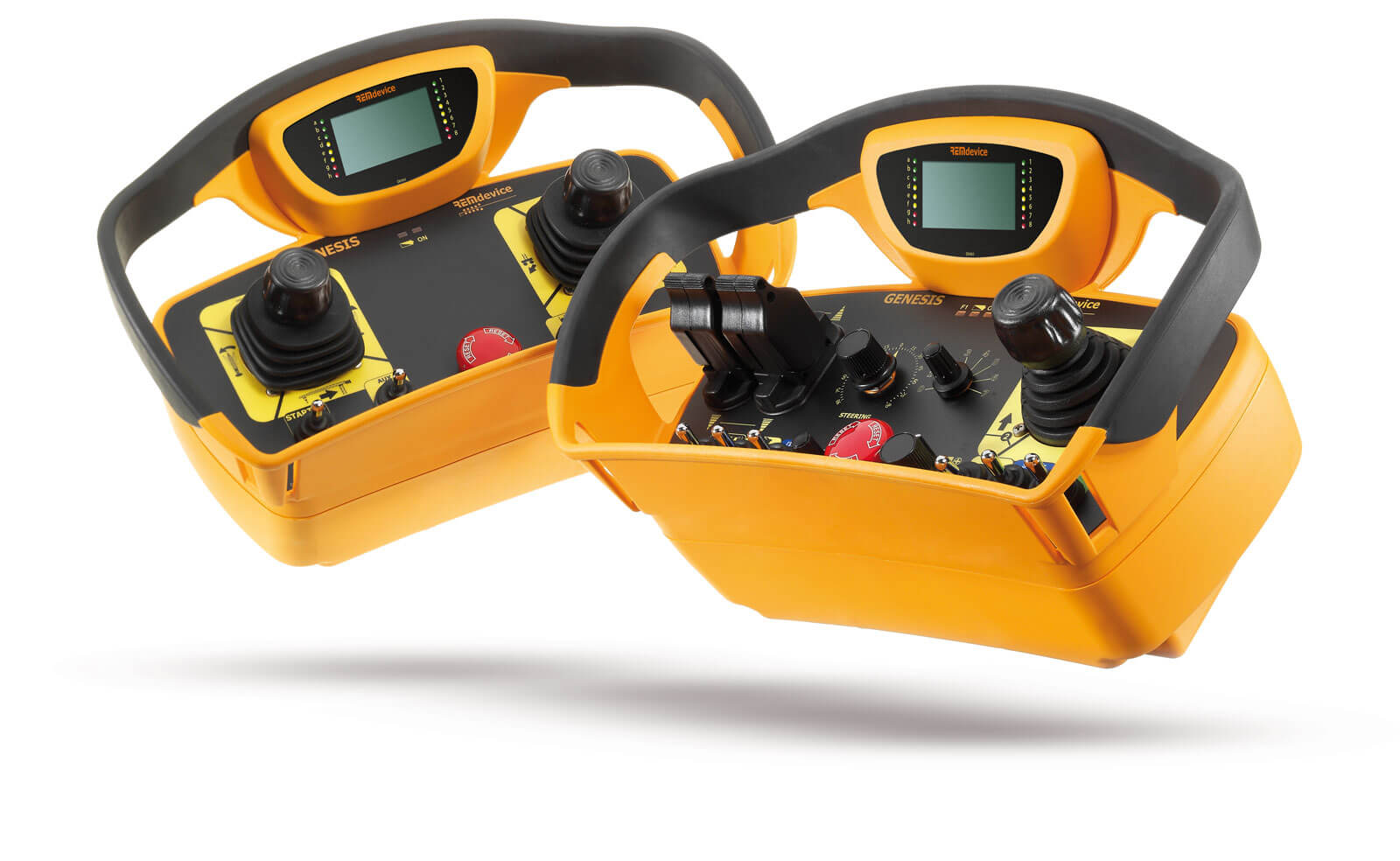

Genesis

24/7 non stop, durability proof

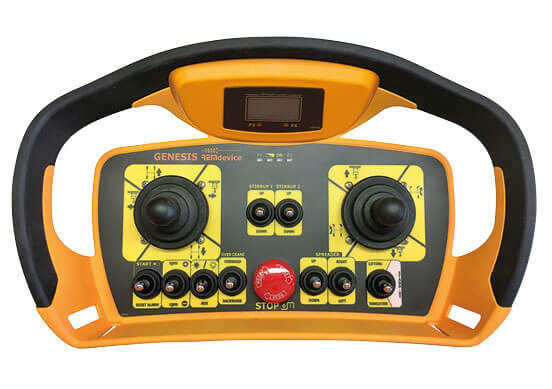

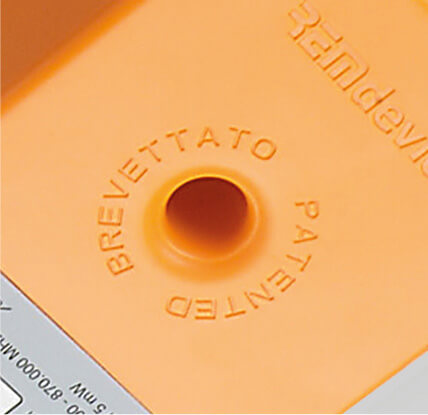

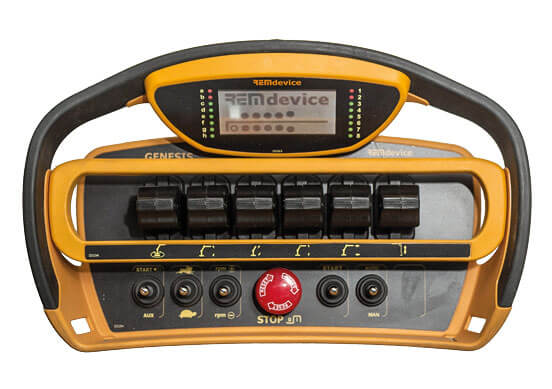

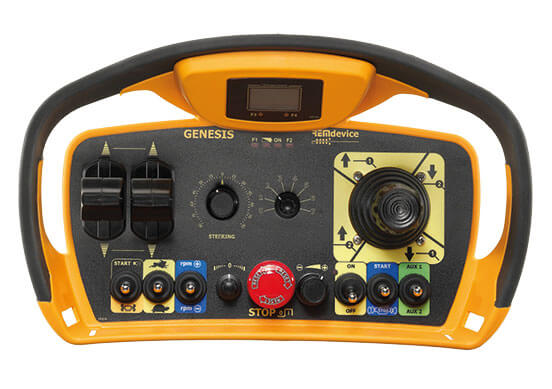

Genesis does not fear any challenge: its recognized resistance to work exploits the tested but innovative induction charging system (patented). Genesis is the fully customizable, robust and ergonomic console.

Technical features

  • • Frequency: 2.4GHz
  • • Channels: 35
  • Hamming code> 4
  • Command response time: 40 ms
  • Stop / Emergency response time active: 40 ms
  • Passive emergency response time: 1 s
  • Performance level of the safety functions according to EN ISO 13849-1
  • Stop protection: PL d
  • Protection from unwanted movements from the rest position: PL c
  • Operating and storage temperature: -20 ° C / + 70 ° C
  • Range of action: 30 meters (in the absence of obstacles)

Transmitter units

  • Modulation: GFSK
  • Emission power: 0 dBm (1 mW) MAX
  • Oscillator: PLL digital synthesizer
  • Antenna: built in
  • Power Supply voltage: 3.6 Vdc
  • Absorption: 9 mA MAX
  • Operating autonomy: up to 2000 hours (20 ° C)
  • Low battery warning time: ~ 30 hours
  • Diagnostics: LED
  • Housing protection degree: IP 65, material: Pa6 FV
  • Dimensions: 200 × 130 × 135mm (W × H × D)
  • Weight: 600 g
